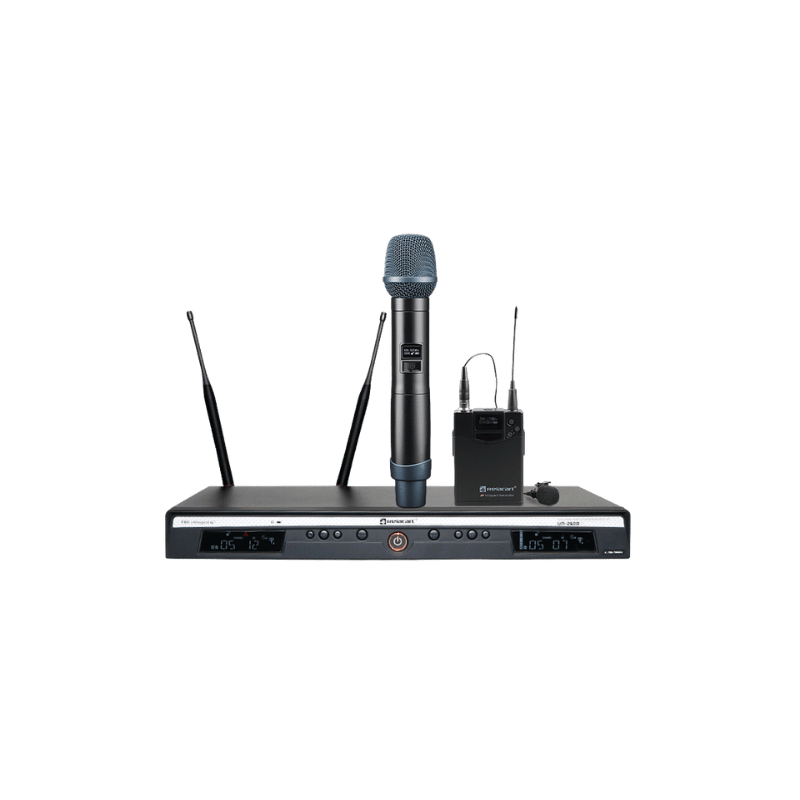

Relacart UR-260D

Relacart UR-260D

Rp16.200.000

Dual-Channel Wireless Microphone System

Categories: , , Tag: Brand:

Description

UR-260D Series of condensed the technology essence that Relacart accumulated over a long period. With advanced technology, sophisticated design, stable performance, with beautiful appearance, convenient operation and attractive price, with superior professional quality to win the market competition. This series is suitable for the nightclub of high requirements, multi-functional hall, hotel, conference room and small to medium performance.

Functional Features

Super Wide Frequency

Super wide frequency range UHF554MHz~936 MHz，Auto Frequency Selection，CPU Intelligent Antenna Diversity.

IR Infrared Counter-Frequency

Press [IR] button to upload automatically the receiver frequency to the transmitter.

Phase Lock Loop Frequency Control

PLL design ensures transmission reliability, “IP address” and “Noise Lock” squelch effectively blocks stray RF.

Magic EQ

Connection software, built-in digital balance processor, 9 voice modes are available, including 7 fixed modes, covering various international brand voice effects, and 2 customized modes, which can be adjusted freely through special operating software to achieve the desired effect.

Auto Frequency Selection

Press the “AFS”button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.

DSP Audio Digital Extension

Domestic pioneered DSP “feedback killer” FBK function, can effectively prevent the howling automatically, for the users to achieve perfect deduce.

Main Frame Size: EIA STANDARD 1U

Channels: Dual Channel

Frequency Stability: ±0.005%  (0~50°C)

Carrier Frequency Range: 521.25MHz-936.85MHz

sampling rate: 96kHz 24-Bit

Default audio equalizer: simulate of various cartridge sound

Modulation Mode: FM stereo modulation

Operating Range: 80M typical ( in open space)

Oscillation: PLL synthesized

Sensitivity: 5dBμV, S/N>60dB at 25 deviation

Max. Deviation Range: ±45KHz

S/N: ＞100dB

T.H.D.: ＜0.5% @ 1KHz

Frequency response: 45Hz-18KHz ±1dB

Power Supply: DC 12~18V/1A

Weight: 2.0kg

Dimension (mm): 410(W)x43(H)x206(D)

Output Connector: LR balanced & 6.3φ phone jack unbalanced

Additional information

Brand

Relacart
