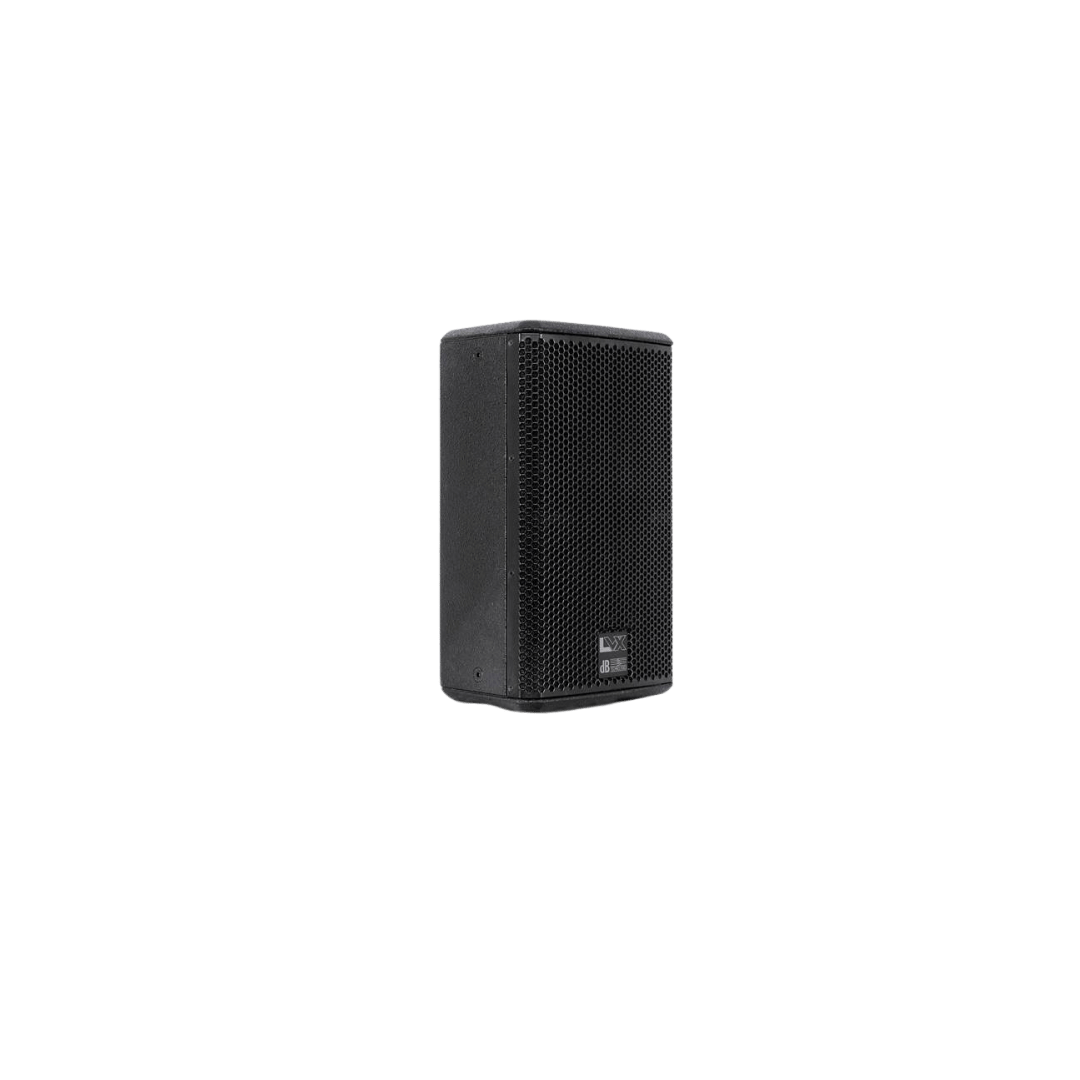

dBTechnologies LVX 8

Rp21.000.000

2-Way Active Point Source Speaker, 1×8″LF / 1×1″HF, 800W Peak RMS

Category: Tag: Brand:

Description

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance.  The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

LVX 8 is provided with a single top handle to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods,

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

Technical Data
Speaker Type
2-Way Active Speaker

Acoustical data
Frequency Response [-10dB]
65 – 20.000 Hz

Frequency Response [-6dB]
80 – 19.000 Hz

Max SPL
121 dB

HF
1″

Directivity
90 x 70°

Horn
Rotatable CD Horn

LF
8″

Amplifier
Amp Technology
Digipro® G2

Amp Class
Class-D

Peak Power
800W

PRG Power
400 W

Processor
Controller
DSP 24bit/48kHz

System Presets
Flat, Processed

Limiter
Dual Active Peak, RMS, Thermal

Crossover Frequency LF-HF
2050 Hz

Slope LF-HF
24 dB/Octave

Mechanics
Housing
MDF

Angles Up
Monitor use 40°

Handles
1x top side, recessed

Rigging points
10 x M8

Pole Mount
D36 mm

Width
260 mm (10.24 in)

Height
420 mm (16.54 in)

Depth
260 mm (10.24 in)

Weight
10.1 kg (22.27 lbs)

Additional information

Brand

dBTechnologies
