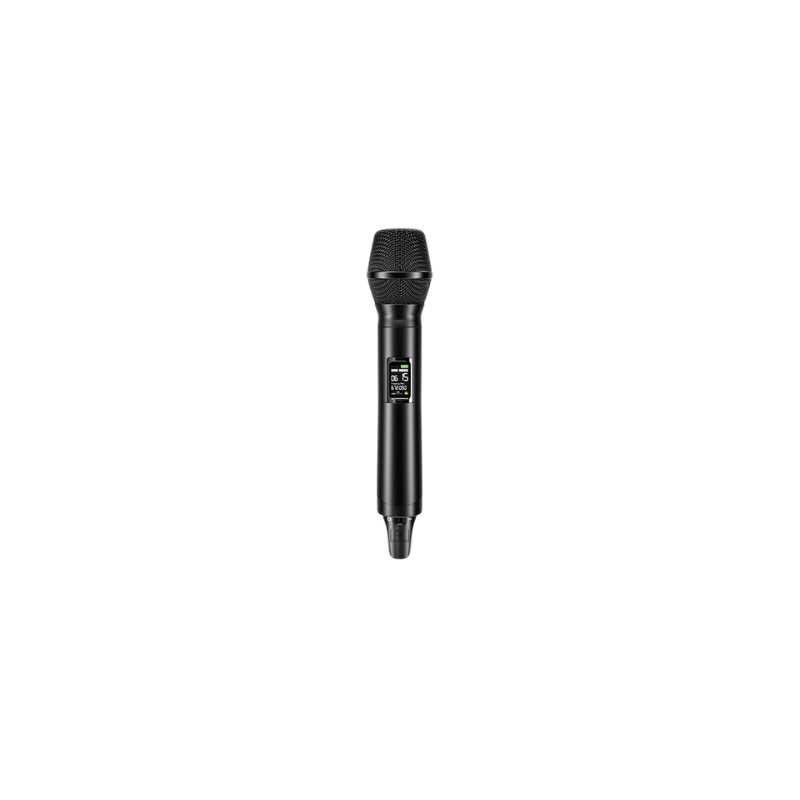

Relacart UH-280

Description

Equipped with a 1.14-inch color TFT screen, clearly display status of frequency group, frequency band, battery level, dB value, lock/unlock, etc. The optional wireless charging version uses safe and durable and environmental lithium batteries, which have a higher cycle life and can be charged when placed in the charging stand. It is suitable for various occasions that require frequent charging.

Carrier Frequency Range:  521.25MHz~936.85MHz

Harmonic Radiation:  <45dBm lower than the main wave

Bandwidth: Single channel 134MHz

(depending on the region)

Modulation: FM

Audio Compression: Relacart classic audio compression circuit

Capsule:  Dynamic

RF Output Power:  10mW, 30mW, 100mW, optional.

Volume adjustment:  -15-+5dB, 1dB step

Working Current:  170mA(Typical)

Battery Current/ Life:  Approximately 8 hours(alkaline)

Dimension(mm):  55(Φ)×269(L)
