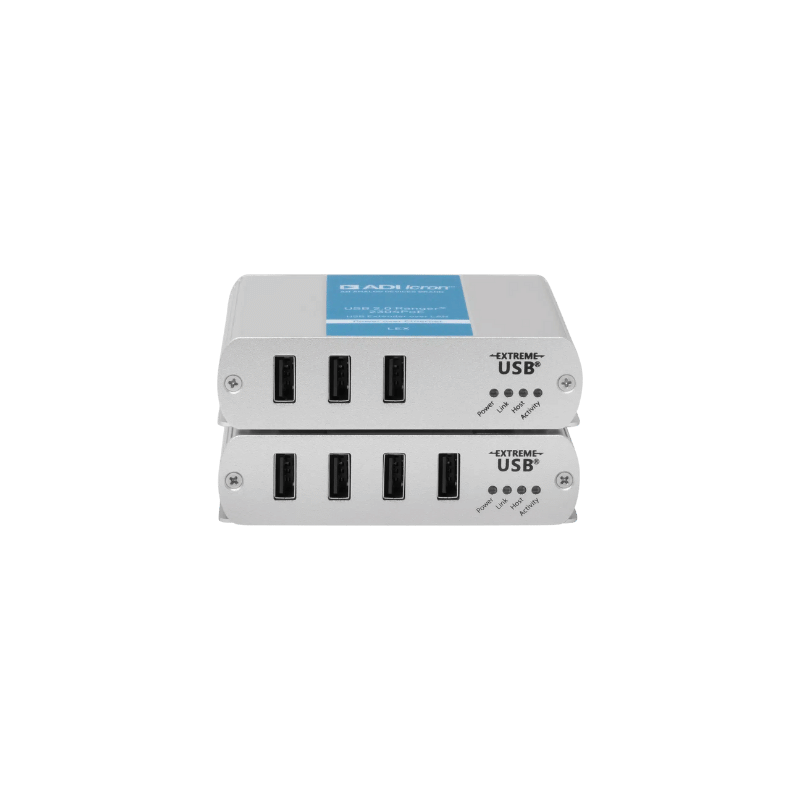

Icron Ranger 2304PoE

Description

Overview

The Icron Ranger® 2304PoE is an advanced USB 2.0 extender designed for extending all types of USB 2.0 and 1.1 devices over a PoE-enabled Gigabit Ethernet network or a single CAT 5e/6/7 cable. By leveraging existing LAN infrastructure, it simplifies installation and enhances IT management. The system is plug-and-play, requiring no software drivers and is compatible with major operating systems including Windows®, macOS™, Linux®, and ChromeOS™.

The Ranger 2304PoE supports data rates up to 480Mbps and can extend connections up to 100 meters (328 feet). It’s perfect for a wide range of applications, such as connecting keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, and USB 2.0 web cameras. With its 4-port REX and 3-port LEX, users can connect multiple USB devices without needing external hubs, making it ideal for industrial control, remote storage, digital signage, and more.

Applications

The Ranger 2304PoE system extends USB devices point-to-point with CAT 5e/6/7 cabling or can leverage existing network infrastructure, and is ideally suited for the following applications:

• Industrial Control
• Remote storage
• KVM Extension
• Digital Signage
• Interactive Whiteboards
• Medical Device Connectivity
• Security and monitoring

Features

PoE Capability: Supports IEEE 802.3at, PoE+ (25.5W), reducing installation time and providing power through existing network infrastructure. Extends USB through a PoE+ capable minimum 1000Mbps LAN.

Network Integration: Can extend USB over a PoE+ capable LAN or single CAT 5e/6/7 cable, with a range of up to 100 meters (328 feet).

Port Configuration: Includes 4 USB 2.0 ports on the REX and 3 on the LEX, eliminating the need for additional USB hubs.

Data Rate: Supports data rates up to 480Mbps for high-speed USB 2.0 devices including isochronous webcams or audio peripherals.

Compatibility: Plug-and-play with no drivers required; compatible with Windows®, macOS™, Linux®, and ChromeOS™.

Durable Design: Rugged metal enclosure designed for durability.

Specifications

Range

• Network Connect: Up to 100m (328 ft) between switches over solid core CAT 5e/6/7
• Direct Connect: Up to 100m (328 ft) over solid core CAT 5e/6/7 or better

USB Device Support

• Network and DIrect Connect Bandwidth: Up to 480Mbps*
• Device Compatibility: All USB 2.0 and 1.1
• Maximum Devices: Supports up to 30 devices

Networking

• Standards: 1000BASE-T*, IEEE 802.3at PoE+ (25.5W)
• Data Traffic: Layer 2

Local Extender (LEX)

• USB connector: 3x USB Type A Ports, 1x USB Type B Port
• Link Connector: 1x RJ45 Ethernet Link Port
• Power Supply:
  • 802.3at PoE+ (25.5W)
  • 100-240V AC Input, 24V 1A DC Output** (Optional, sold separately)
• Available Current: Up to 1.5A at each USB port concurrently, 3.5A total
• Enclosure Material: Silver Anodized Aluminum
• Dimensions: 100mm x 86mm x 26mm (3.94″ x 3.39” x 1.02″)
• Weight: 194 g (0.43 lbs.)

Remote Extender (REX)

• USB Connector: 4x Type A Ports
• Link Connector: Link connector: 1x RJ45
• Power Supply:
  • 802.3at PoE+ (25.5W)
  • 100-240V AC Input, 24V 1A DC Output* (Optional, sold separately)
• Available Current: Up to 1.5A at each USB port concurrently, 3.5A total
• Enclosure Material: Silver Anodized Aluminum
• Dimensions: 100mm x 86mm x 26mm (3.94″ x 3.39” x 1.02″)
• Weight: 190g (0.42 lbs.)

Hub Tiers Used: 2

Environmental

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

• FCC (Class A), CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1, NRTL, RCM, and UKCA

* Maximum speed is heavily dependent on network configuration, bandwidth and performance. 1000Base-T is highly recommended for best performance

**  If both PoE power and the external power adapter are present, the external power supply serves as the main source of power.
